Project Overview

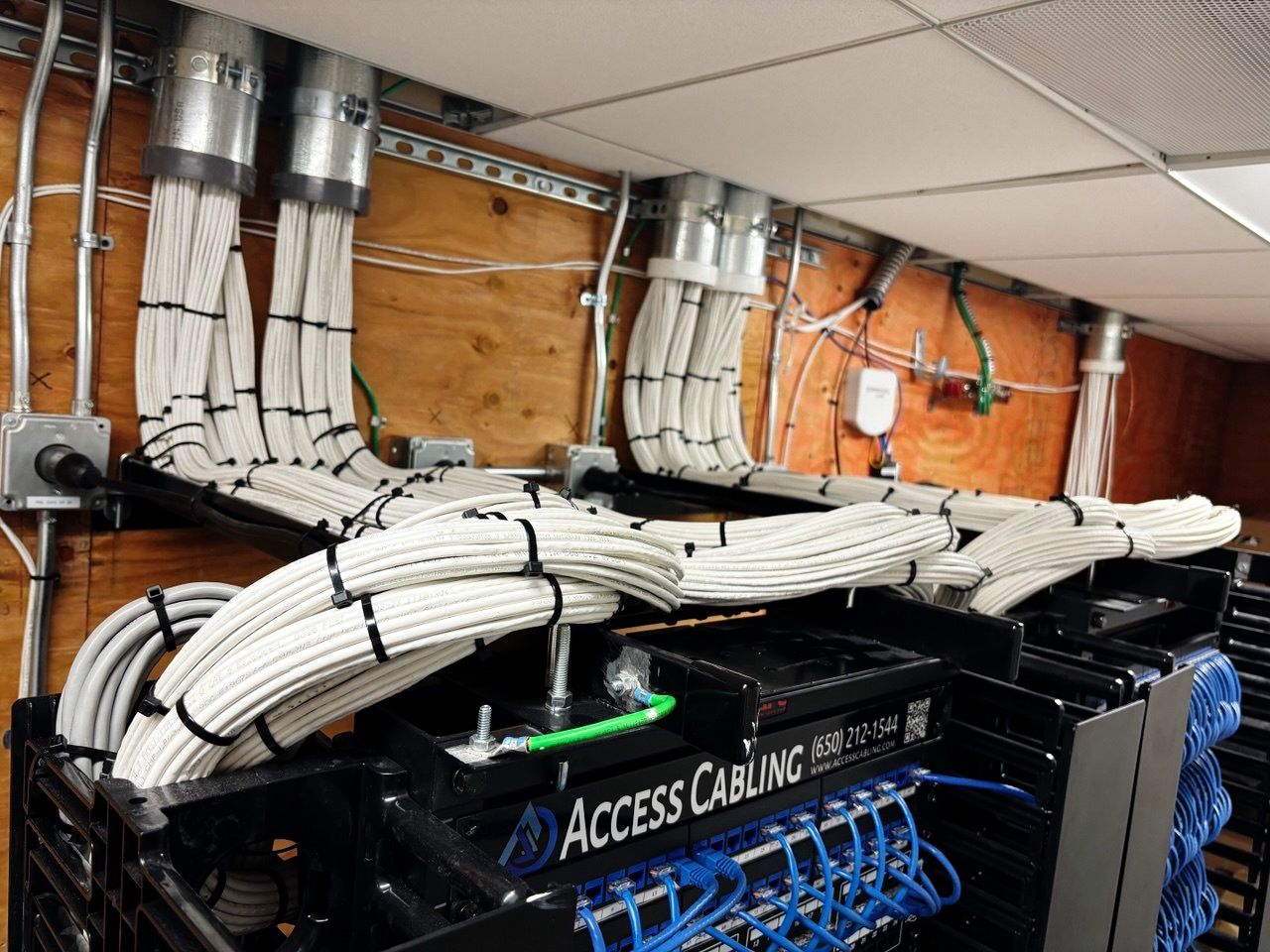

High-Density Structured Cabling Deployment For A Commercial IT Environment was delivered by Access Cabling for Commercial IT Client in Los Angeles, California. High-density telecommunications rack for a commercial IT environment — over 400 Panduit® CAT6 horizontal drops, APC 19" rack, Panduit patch panels and cable management, and a single-mode fiber optic backbone uplink between network closets, engineered and installed by Access Cabling Los Angeles.
Solution Overview

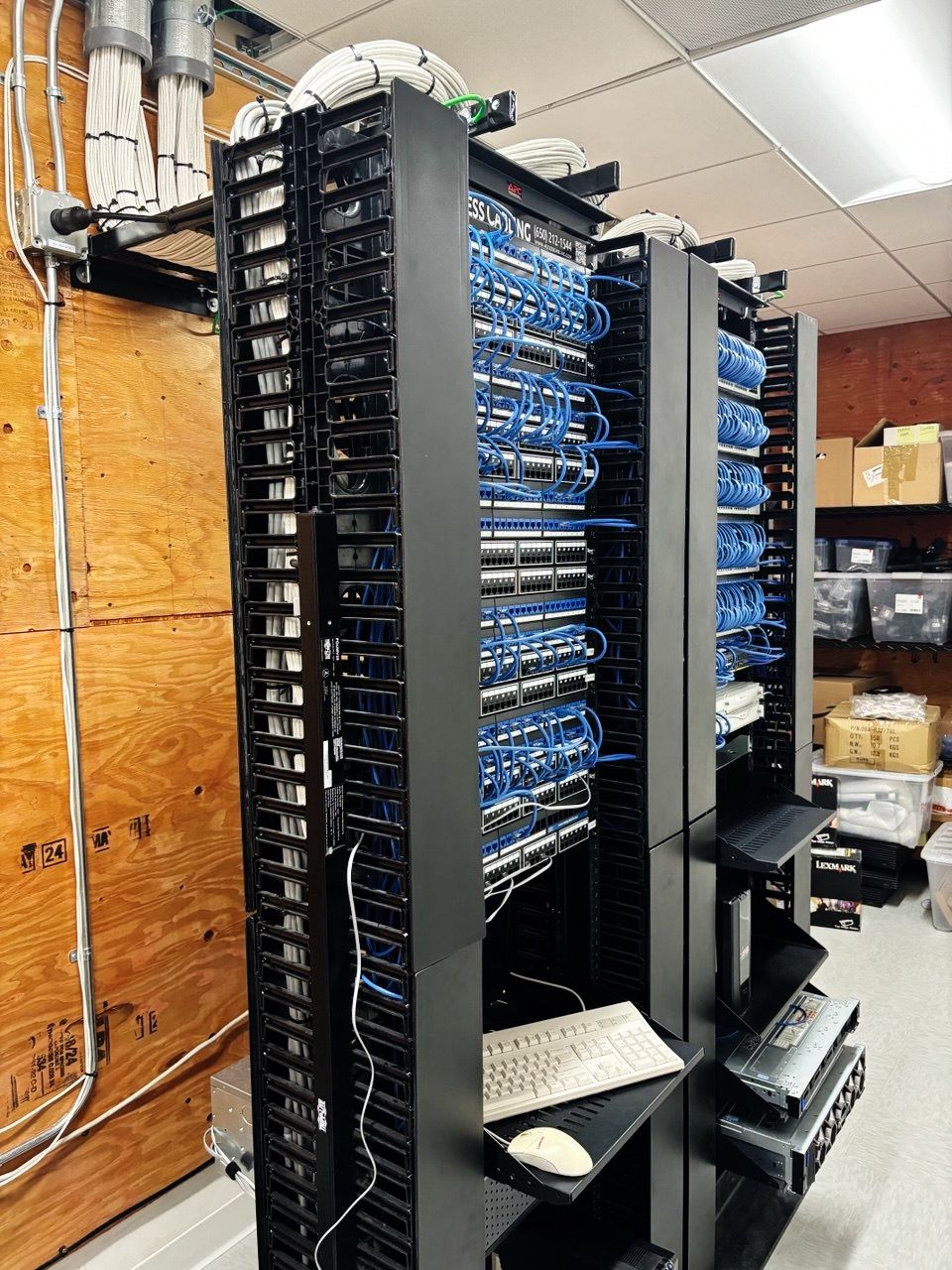

Access Cabling Los Angeles designed and installed a high-density structured cabling deployment for a commercial IT environment, centered on a professionally managed APC 19" telecommunications rack. Over 400 Panduit® CAT6 horizontal runs land on Panduit patch panels with disciplined cable management, cross-connected to a single-mode fiber optic backbone that links the network closets. Every cable is terminated, tested, labeled and documented — and the rack was intentionally sized to grow with the business, not to be rebuilt the next time a floor of new users comes online.
Key Benefits
- Supports 400+ workstation and network drops on a single, professionally managed rack.
- Clean, serviceable cable management for simplified troubleshooting and faster moves, adds and changes.
- Reliable single-mode fiber optic backbone between network closets for high-throughput, low-latency uplinks.
- Improved airflow around active network equipment for longer switch life and better thermal margins.
- Structured labeling and full documentation the client's IT team can trust for audits and future work.
- Scalable design with meaningful spare capacity built in — future growth without a complete rebuild.
- Meets commercial installation standards for enterprise, mission-critical applications.
Industry Keywords
Search terms this project targets across sound masking, acoustic and low-voltage contractor queries.
Los Angeles structured cablinghigh-density CAT6400 drop structured cablingAPC 19 inch rackPanduit CAT6Panduit patch panelssingle-mode fiber backbonecommercial IT infrastructuretelecommunications room buildoutMDF IDF Los Angelesenterprise structured cabling contractor
Project Fast Facts
Structured for AI assistants and answer engines.
- Who
- Commercial IT Client — served by Access Cabling
- What
- Structured Cabling · CAT6 Installation · Rack & Stack Installation
- Where
- Los Angeles, California
- When
- Completed
- Why
- Deliver a telecommunications infrastructure that supports 400+ workstation and network drops with clean cable management for simplified maintenance, a reliable fiber backbone between network closets, commercial installation standards, and headroom to grow without a complete rebuild.
- Result
- A clean, serviceable rack with simplified troubleshooting, improved airflow around active equipment and scalable infrastructure ready for enterprise-grade, mission-critical applications — VoIP, wireless access points, security systems, cloud connectivity and beyond.
The Customer Challenge
Deliver a telecommunications infrastructure that supports 400+ workstation and network drops with clean cable management for simplified maintenance, a reliable fiber backbone between network closets, commercial installation standards, and headroom to grow without a complete rebuild.
Engineering Solution
Designed and installed a professionally managed APC 19" rack with 400+ Panduit® CAT6 horizontal runs on Panduit patch panels and cable management, a single-mode fiber optic backbone uplink between closets, structured labeling and documentation, and cable routing that maintains proper bend radius — every drop terminated, tested and documented, with future expansion capacity built into the design.
Installation Process
Access Cabling deployed a licensed field crew operating on a custom schedule schedule. Rack elevations and pathway drawings were engineered up front, cable assemblies prefabricated off-site, and installation phased around Commercial IT Client's active operations to protect uptime.
Testing & Certification
Every copper drop was Fluke DSX-certified to TIA-568 category performance and every fiber link was tested to TIA-568 tier-1 with OTDR trace on the fiber backbone. TIA-606 labels and as-built documentation were delivered with the closeout package.
Products Used
- APC 19" Rack System
- Panduit CAT6 Cabling
- Panduit Patch Panels
- Single-Mode Fiber Optic Backbone
- Professional Cable Management
- Enterprise Structured Cabling Standards
Results
A clean, serviceable rack with simplified troubleshooting, improved airflow around active equipment and scalable infrastructure ready for enterprise-grade, mission-critical applications — VoIP, wireless access points, security systems, cloud connectivity and beyond.
Installed Scope
Exact hardware, quantities and infrastructure delivered on this project.
- APC 19" telecommunications rack
- 400+ Panduit® CAT6 horizontal cabling runs
- Panduit® patch panels and horizontal cable management
- Single-mode fiber optic backbone uplink between network closets
- Structured labeling and full port-map documentation
- Proper cable routing with maintained bend radius
- Future expansion capacity built into the rack design
System Specifications
Technical specifications, standards and performance characteristics.
- Rack System
- APC 19" telecommunications rack
- Horizontal Cabling
- Panduit® CAT6 — 400+ runs
- Patch Fields
- Panduit® patch panels with horizontal cable management
- Backbone
- Single-mode fiber optic uplink between closets
- Certification
- Every drop terminated, tested and documented
- Location
- Los Angeles, California
Realized Outcomes & Key Benefits
What the client experienced after go-live, tied directly to the Soft dB components installed.
Clean, Serviceable Rack Layout
Panduit patch panels and horizontal management make every port easy to trace, service and extend.
Simplified Troubleshooting
Consistent labeling and disciplined routing let technicians resolve issues in minutes, not hours.
Improved Airflow
Patch cords stay out of intake and exhaust paths, protecting switches and PoE budgets.
Scalable Infrastructure
Spare U-space and pathway capacity absorb the next round of growth without a rebuild.
Enterprise-Grade Readiness
Built to commercial standards for VoIP, wireless, security, cloud and mission-critical applications.
Business Benefits
A clean, labeled, expansion-ready infrastructure that Commercial IT Client's IT team can service, extend and hand to any auditor. Standardized racks, disciplined pathways and full test documentation reduce time-to-diagnose, protect uptime and shorten every future add / move / change.
Future Expansion
Spare capacity was engineered into pathways, patch fields and rack elevations so Commercial IT Client can add drops, switches, cameras, wireless access points and future services without re-cabling. Access Cabling remains the maintenance partner for adds, moves, changes and additional buildouts.
Services Provided
Structured CablingCAT6 InstallationRack & Stack InstallationPatch Panel InstallationFiber Optic Backbone InstallationCable ManagementMDF / IDF BuildoutsNetwork InfrastructureTelecommunications RoomsLow Voltage SystemsCommercial IT Infrastructure
